automatic chowmein noodle making equipment factory

Share to:

automatic chowmein noodle making equipment factory

Chowmein noodle making machine
Process flow Flour mixing---dough aging---pressing----cutting ---hanging or worker put noodle into plate ---High pressure sterilization and steaming--- worker put noodle into box------ drying ---packing
Chow mein noodle making machine also called hand made noodle making machine.
Process: Flour mixing --- aging ---- dough pressing ---- rod hanging ---- high pressure steaming ---- put noodle into box by hand ---- drying ---- cooling ----- packing.
Chowmein noodle will be better after through high pressure steaming. The noodle is more loose and taste better. It can also stay for a long time.
Chow mein noodle makingmachine usually have 250kg ,400kg ,500kg ,630kg ,900 kg , 1200kg per hour capacity.

Availability:

Quantity:



Inquire Add to Basket

Model:
250kg/h，400kg/h, 500kg/h,630kg/h,900kg/h,1200kg/h
Brand:
GASHILI

Product Description

Introduction of chowmein noodle making line

chowmein noodle making line

Chowmein noodle making machine

Process flow Flour mixing---dough aging---pressing----cutting ---hanging or worker put noodle into plate ---High pressure sterilization and steaming--- worker put noodle into box------ drying ---packing

Chow mein noodle making machine also called hand made noodle making machine.

Process: Flour mixing --- aging ---- dough pressing ---- rod hanging ---- high pressure steaming ---- put noodle into box by hand ---- drying ---- cooling ----- packing.

Chowmein noodle will be better after through high pressure steaming. The noodle is more loose and taste better. It can also stay for a long time.

Chow mein noodle makingmachine usually have 250kg ,400kg ,500kg ,630kg ,900 kg , 1200kg per hour capacity.

Detailed Process

Chowmein noodle making machine

Process flow Flour mixing---dough aging---pressing----cutting ---hanging or worker put noodle into plate ---High pressure sterilization and steaming--- worker put noodle into box------ drying ---packing

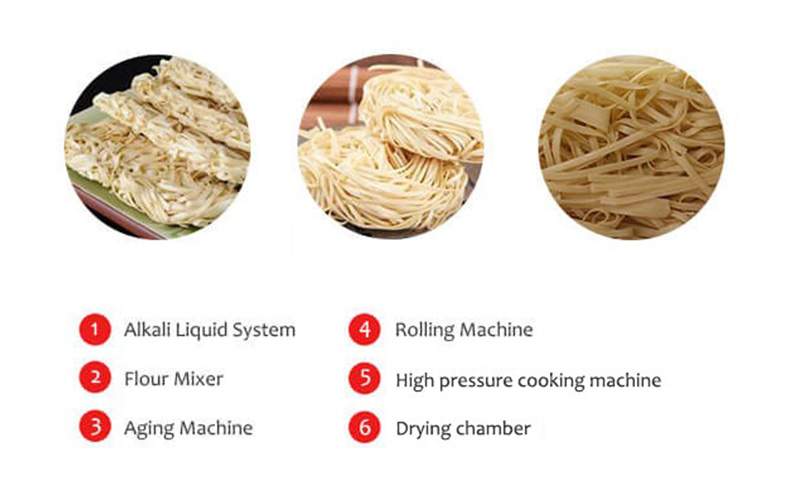

Sequence	Product Image	Product Name	Product Description

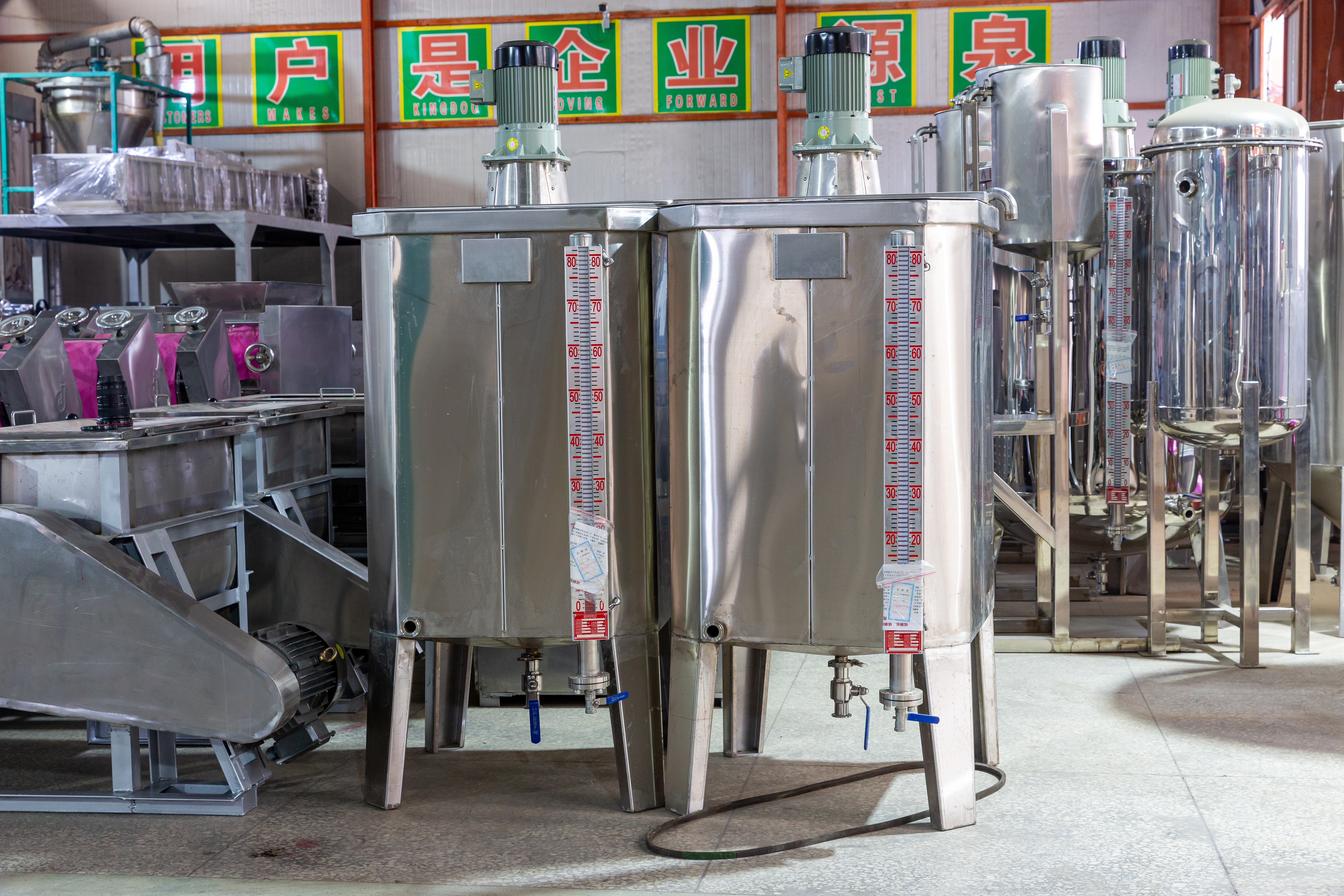

1		Alkali liquid system	Water mixed with additive such as salt, alkali. body,shaft,mixing device stainless steel304，water measuring automatically
2		Flour mixer	Flour and water combined and mixed full,mixing tank made of stainless steel 304. mixing shaft,water injection pipe,safety head,cover made of stainless steel. supporter,driving shaft,driving fitting,fastener made of carbon steel.
3		Aging machine	Second time aging for dough sheet. tray,rod made of stainless steel 304 driving fitting. supporter made of carbon steel.
4		Rolling machine	Pressing dough sheet and make it thinner.feeder,cover made of stainless steel.roller side,supporter,driving fitting made of carbon steel. scrapper: copper ,guard board for roller:nylon .noodle press roller: solid alloy ,dough sheet conveying belt: food grade
5		High pressure cooking machine	Steam noodle by high pressure. It can sterilize noodle and make noodle quality better
6		Drying chamber	It can remove the water of noodle cake and prepare the packing,It can make into one layer or two layers accord customer's space. Net belt stainless steel,frame and driving part carbon steel

Specification

Model	Capacity	Power	Workshop(m)	Steam Consume	Worker
330	250kg/h	25kw	L25 X W10 X H3	1000kg/h	9
350	400kg/h	40kw	L35 X W10 X H3	1200kg/h	10
450	500kg/h	50kw	L40 X W10 X H3	1400kg/h	12
550	630kg/h	65kw	L45 X W10 X H3	1600kg/h	14
650	900kg/h	75kw	L50 X W10 X H3	1800kg/h	16
800	1100kg/h	90kw	L60 X W10 X H3	2000kg/h
